Analyzing your profiled data can be a little overwhelming for the first time. In this documentation you can find all the necessary knowledge to understand what's going on:

Sections (Tree, Flame, List, Timeline, Plugin)

Toolbar

Timeline Graph

Thread Filtering & Ordering

Timing Modes

Selecting

Searching

Color Markers

Exceptions

Suspensions

Garbage Collects

Properties

Recent Sessions

Current Session Info

Code

Sections (Tree, Flame, List, Timeline, Plugins)

In the profiling view there are 5 main sections:

• Tree

  This view shows you a performance tree, split up per thread (and process if child processes were traced) or combined.
  By clicking on 'Per thread' or 'Combined' you can switch between the two. The tree items are ordered by duration.
  If you click on an item it will automatically expand all items below recursively for as long as they don't have any sibling nodes.This allows you to locate a bottle neck very fast.



• Flame

  The flame graph shows you the same information as the Tree view but in a graphical way. From bottom to top are the different call stacks. The wider the boxes are, the longer the (sum of the) calls took. The colors range from yellow (lowest call count) to dark red (highest call count). You can zoom in on the graph by using CTRL + mousewheel up (or down to zoom out). If you hover over the boxes you get some more information forthat particular call. If you click on a method, this will get selected (so if you then move to the treeview you will automatically be at the right spot). Just as with the Tree, you can also switch between 'Per thread' and 'Combined'. If you rescoped to a certain period in time, there might be some white colored methods, this means these calls are not completely within the time frame you selected (and thus have call count 0). Threads are also shown in white at the start of your stack.



• List

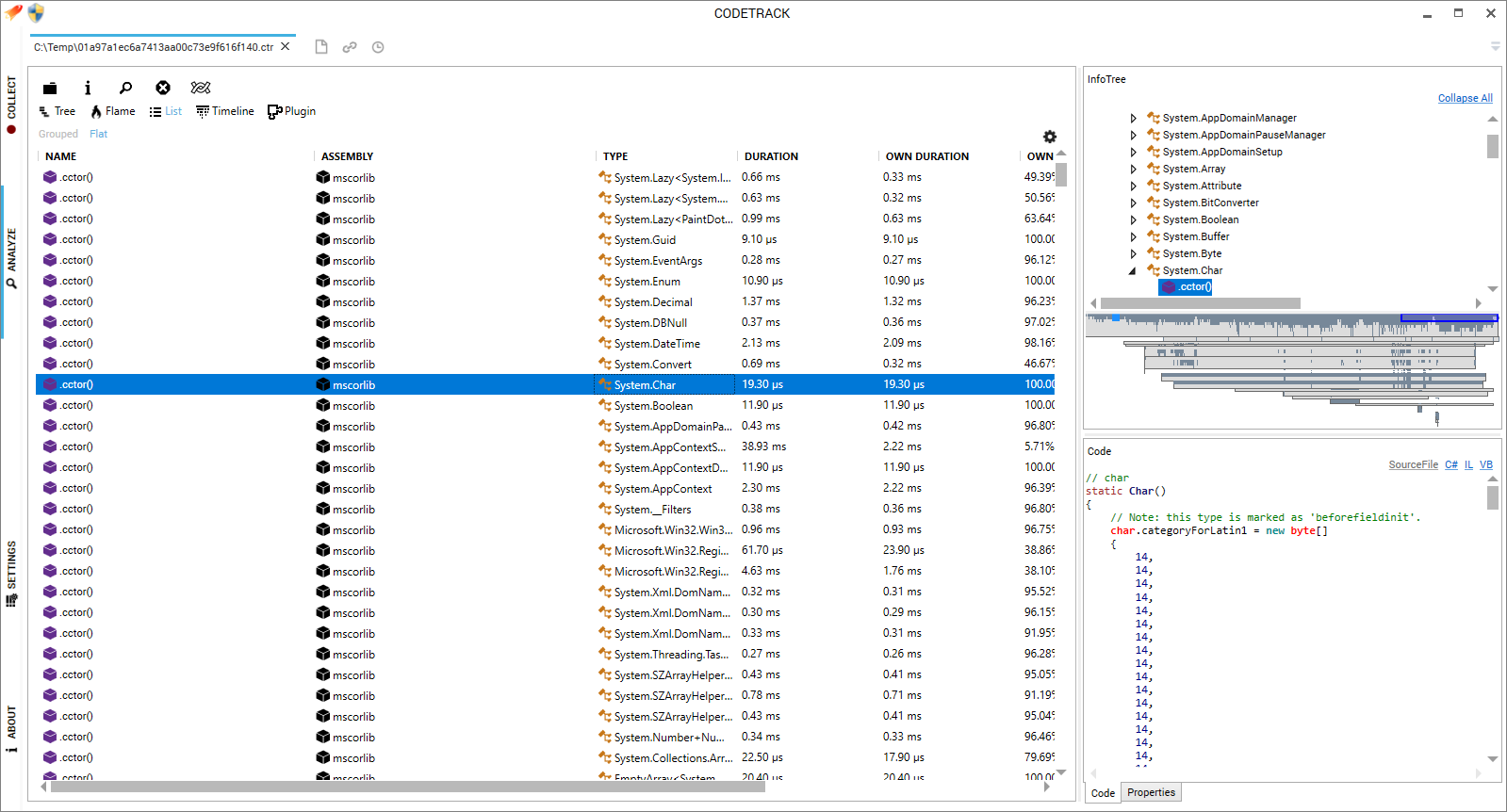

  This shows you a list view of all method calls organized by assembly, namespace and type. You can order the calls by clicking on the column headers.
  There are two kind of list views:

  • Flat: shows you a flat list of all methods


  • Grouped: shows the methods grouped by assembly, namsepace and type



• Timeline

  Depending on your trace configuration, your timeline might look a little different. Methods that are DeepTraced (see Profiling modes) appear in blue, all others (sampling and regular tracing) appear in orange.
  From left to right is the time axis, and from top to bottom you go deeper in the call stack. Threads are stacked upon each other vertically, the thread names are shown at the front of each thread.
  If you move your mouse over an item you will see an info tooltip. If you click on an item it will be selected and you will get the properties for that specific call in the properties tab (you can also select multiple items by using shift and/or control click). If you had enabled parameters, you will find them in the properties window. If object tracking was on, every object will have it's unique id between square brackets (as well in the instance, as in all arguments).



  On the right you'll find the assembly tree to browse and find all method calls by assembly,namespace and type.
  Bellow the assembly tree, is the heli(copter) view. You can use this to select the viewport for the timeline and/or move it around. If a particular method is selected, all calls of this method will be highlighted in the heliview (little blue dots). You can simply click once on an instance to select it. If you doubleclick that instance will be selected AND the view will be zoomed in on that item.
  Navigating in the timeline can also be done by using the buttons in the toolbar (Zoom to fit, Zoom, Drag). You can also use ctrl+scroll to zoom in and out on particular piece in the view.

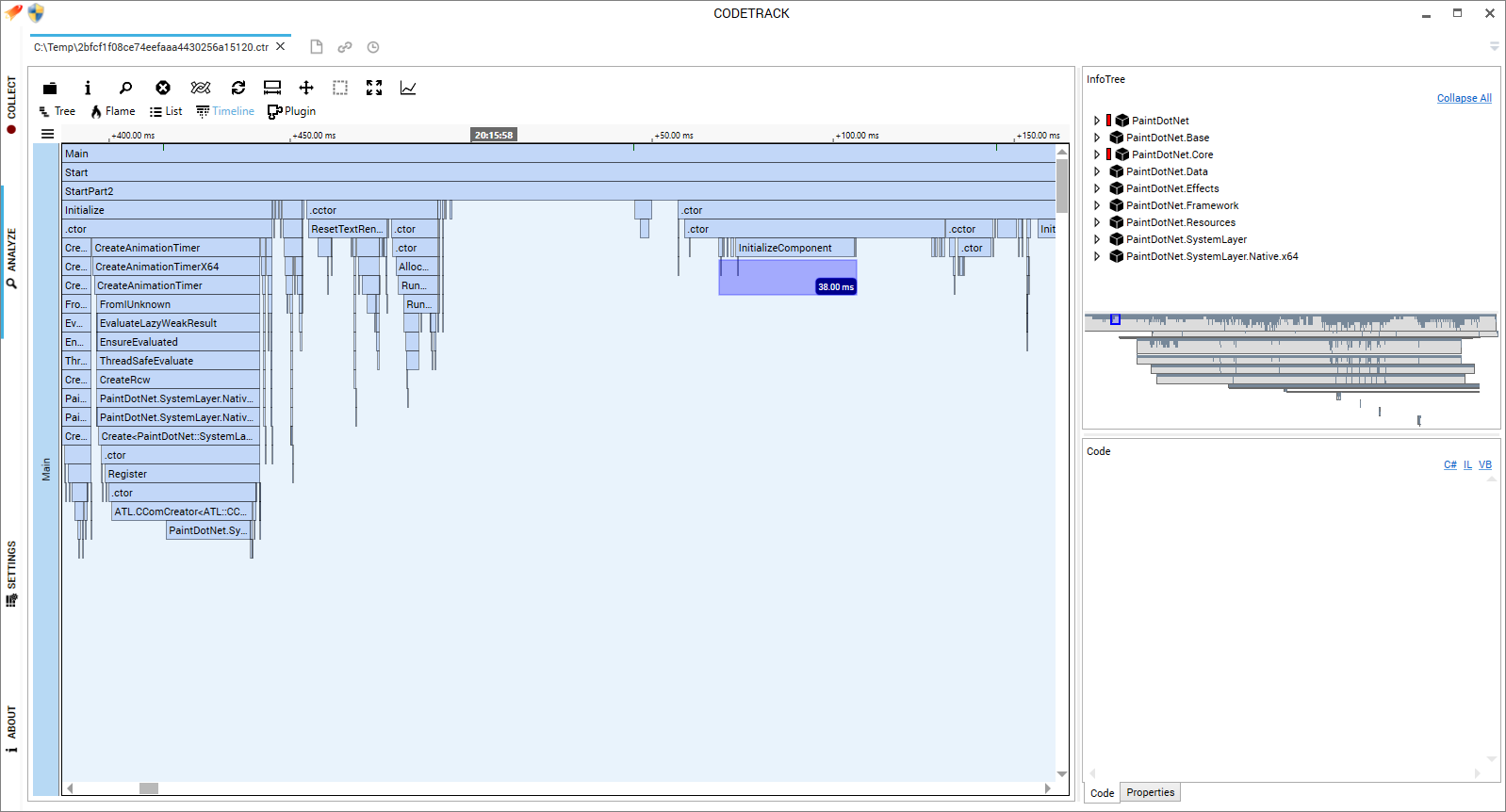

  If you hold the left mouse button while dragging the mouse you get a measurement tool overlay to find out how long any piece of the timeline takes.




• Plugins

  Depending on your tracing settings, some plugins might be enabled. If you write your own plugins they will also be shown here if available. CodeTrack comes with 2 plugins :

  • Generic plugin:This plugin is available as soon as 1 deeptraced method is present and shows all deeptraced method calls of all threads in chronological order with their arguments. Selecting an item will also show its location in the timeline and allows you to navigate to that specific place.
    A filter is also provided at the top of the list.


  • Console Plugin:This plugin is available if a trace was made with the console ruleset enabled. It gives you a clickable presentation of the console output during tracing. From this console output you can easily navigate to a certain position in the timeline by just clicking on an item in the output.




Goto top

Toolbar

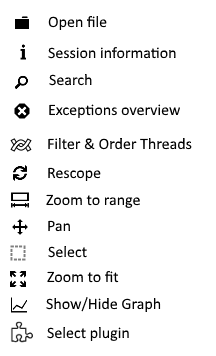

The toolbar at the top provides all necessary tools to navigate and analyze your profiling session:



Goto top

Timeline Graph

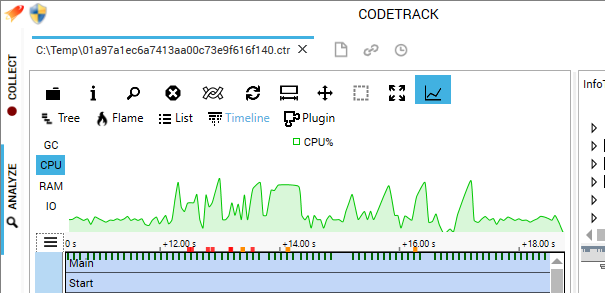

By clicking the "show/hide graph" button, you can display the extra metrics that are measured during your profiling session. These metrics contain: Heap sizes (GC), processor usage by your process (CPU), memory usage by your process (RAM), disk io by your process (IO).
Not that the heap sizes are collected from WMI, sometimes this doesn't work and these metrics are not available. The first measurement can only occur AFTER the first garbage collect.
By hovering over the graph you can get the values of the metrics.



Goto top

Thread Filtering & Ordering

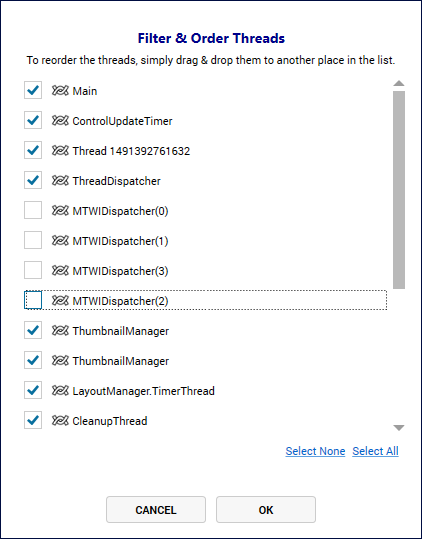

By clicking the "Filter & Order Threads" button in the toolbar, you get a dialog where you can reorder the treads by dragging them around. You can choose which threads to include in the views (this affect all views: "timeline" , "per thread", "all threads", "list", "exceptions",...)




TIP

You can for instance use this to select all threads with the same name and then get a combined view for these threads in the "all threads" view.
Goto top

Timing modes

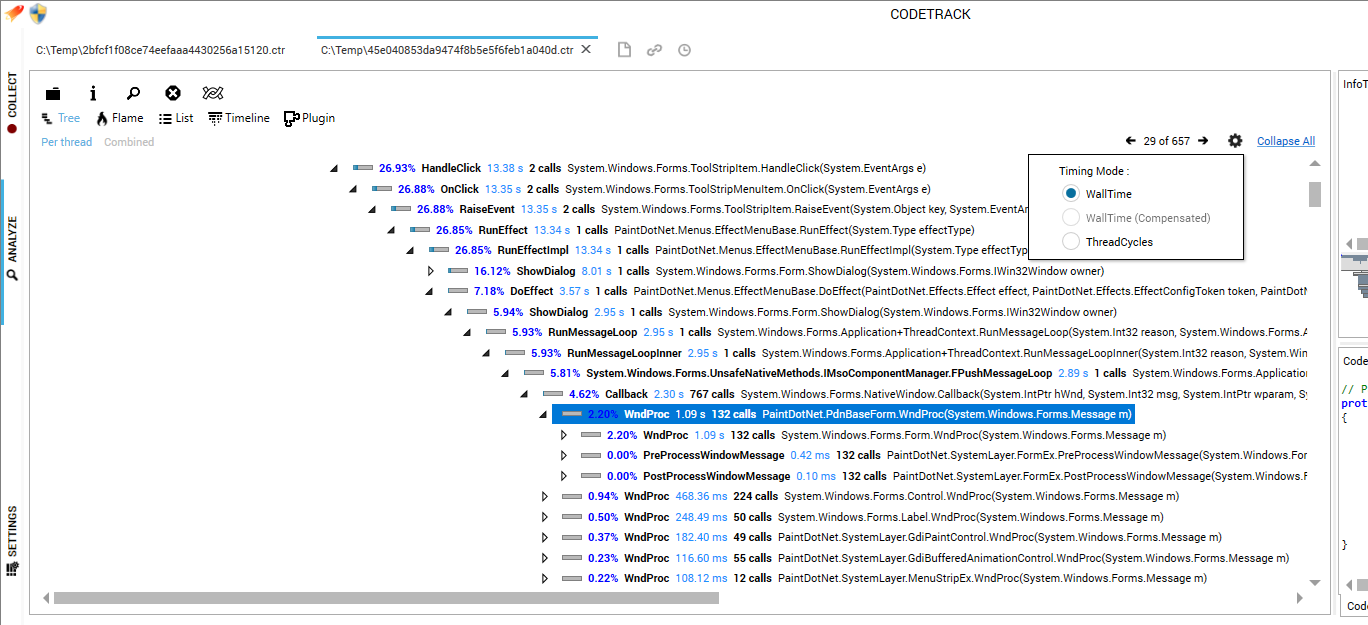

Depending on the settings you choose before collecting your profiling data (Under the 'advanced' expander in your tracing options), you can select the kind of timings you want to see in all the previous views by clicking the gear icon in the upper right corner (timeline is always in Walltime mode).




Goto top

Selecting

Selecting calls will be effective over all sections. So eg. if you make a selection in the timeline, the call will also be selected and highlighted in the tree views and vice versa.
You can use the navigator in the topright corner of the treeviews to navigate to previous and next instances if available.


Goto top

Searching

Use Ctrl+F or press the magnify icon in the toolbar to search anything by name. This will allow you to find assemblies, namespaces, types and methods.
Note that codetrack takes in account the generics of a class and/or method. Eg. the Add method of List can be shown multiple times, with different generics.



Goto top


Color Markers

You can right click on a method in the assembly tree to mark or unmark all instance of a certain method.
These markers will also be visible in the timeline.



Goto top

Exceptions

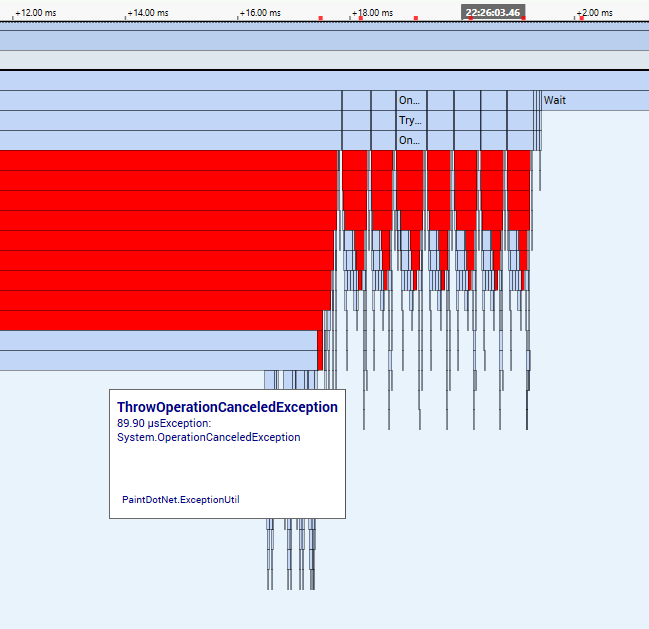

Exceptions will be marked red (as well in the timeline view as in the assembly tree). If an exception is caught, all methods where this exceptions passes in the stack will also be marked red.
Move your mouse over the stack tree, you'll find more info about the exception in the deepest red item. (this is only the case for non virtualized timelines)

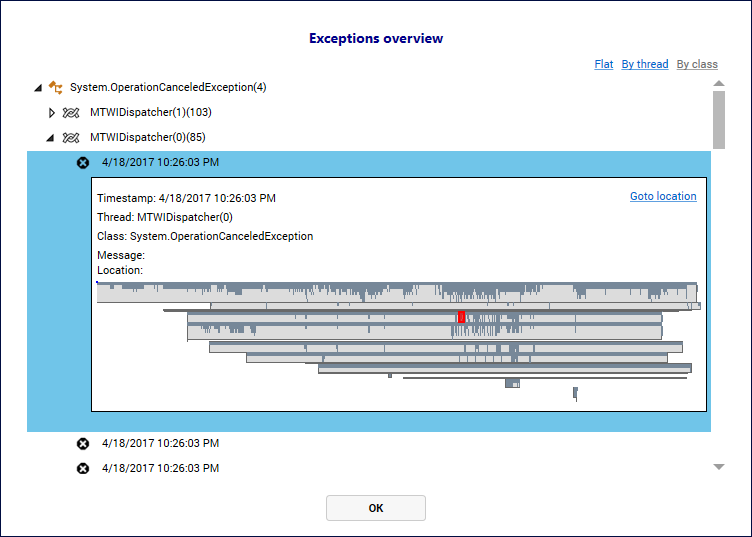

In the exception overview ("Exceptions overview" button in the toolbar) you can browse through all exceptions that occured. This can be done by thread, exception class or just a flat list. If you select an exception you get more information and you can goto the location in the timeline where the exception occured. You will also find a red marker in the ticks header. By hovering over the tick you also get more information about the exception.




Goto top

Suspensions

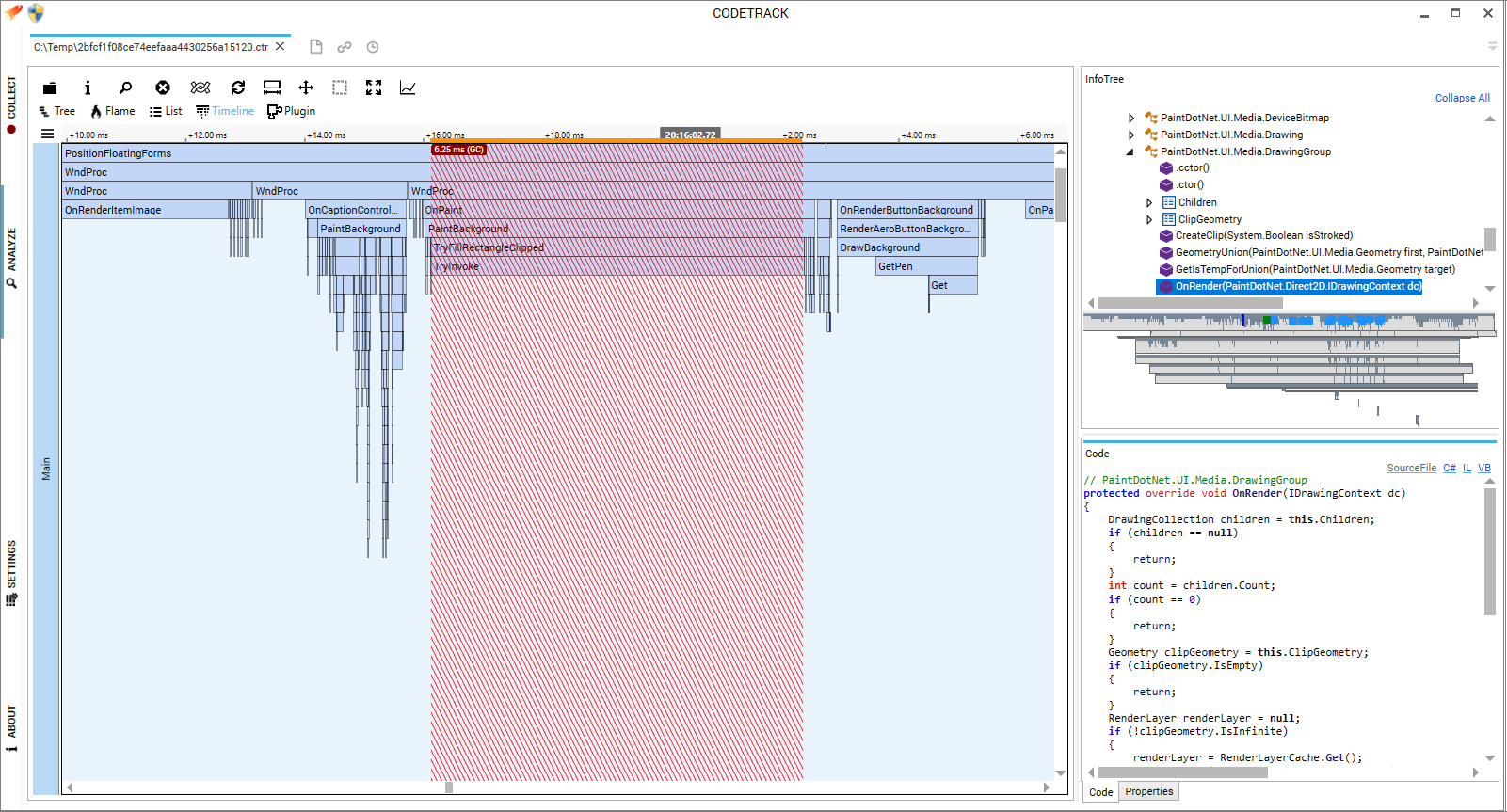

Whenever a managed thread is suspended, this is also traced. If you zoom in in the timeline, suspensions will be marked with a red hatch pattern. If the reason for the suspension is known, it will also be shown:




Goto top


Garbage collects

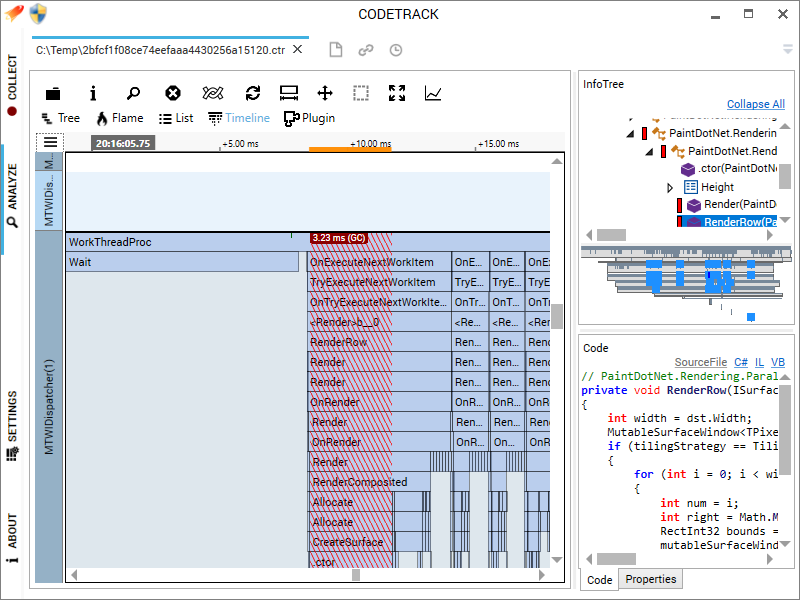

Garbage collects are shown as orange markers in the tickheader at the top of the timeline. If GC info was enabled under the advanced expander (Collect window), hovering over the marker will also tell you which generations were collected.




Goto top


Properties

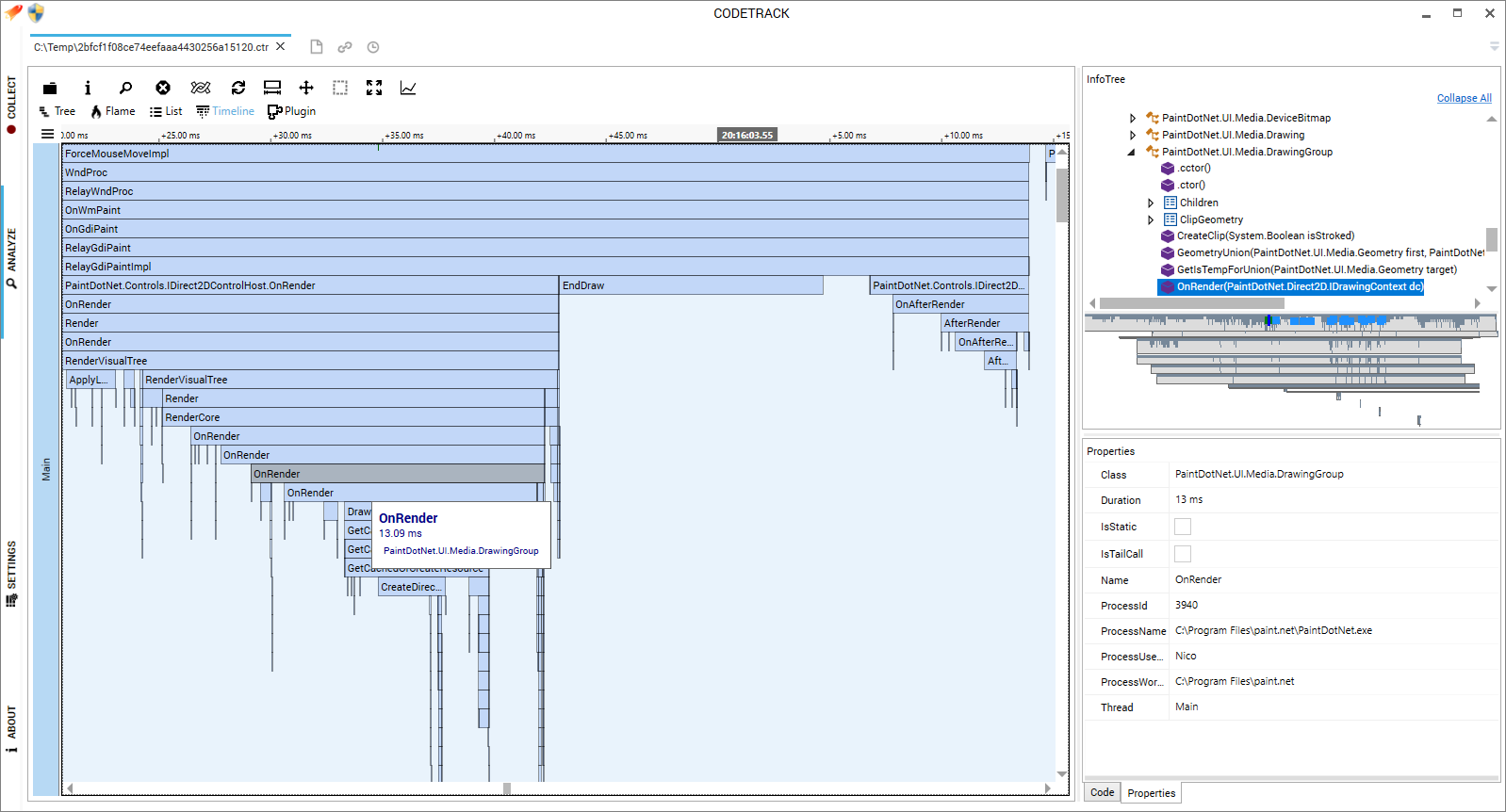

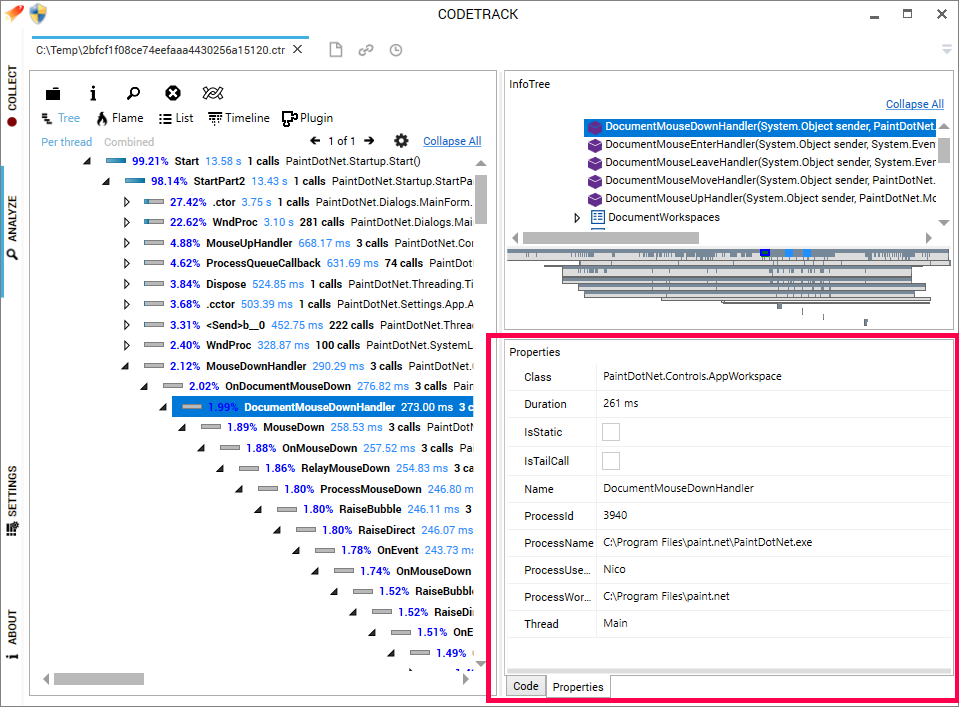

In the properties tab, you'll find everything there is to know about a certain method call, or the selected namespace, type, method, ...
If you enabled argument tracing, you'll find the values for the parameters and return value in the property grid.




Goto top


Recent sessions

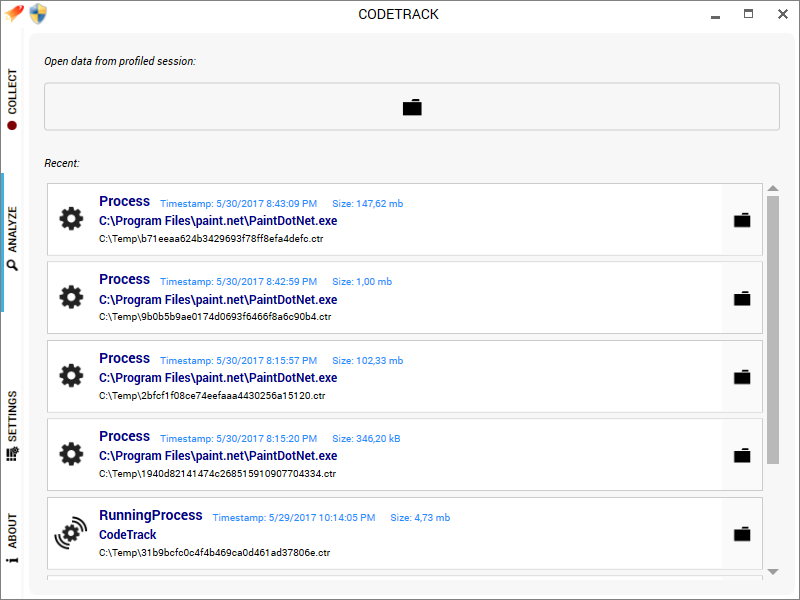

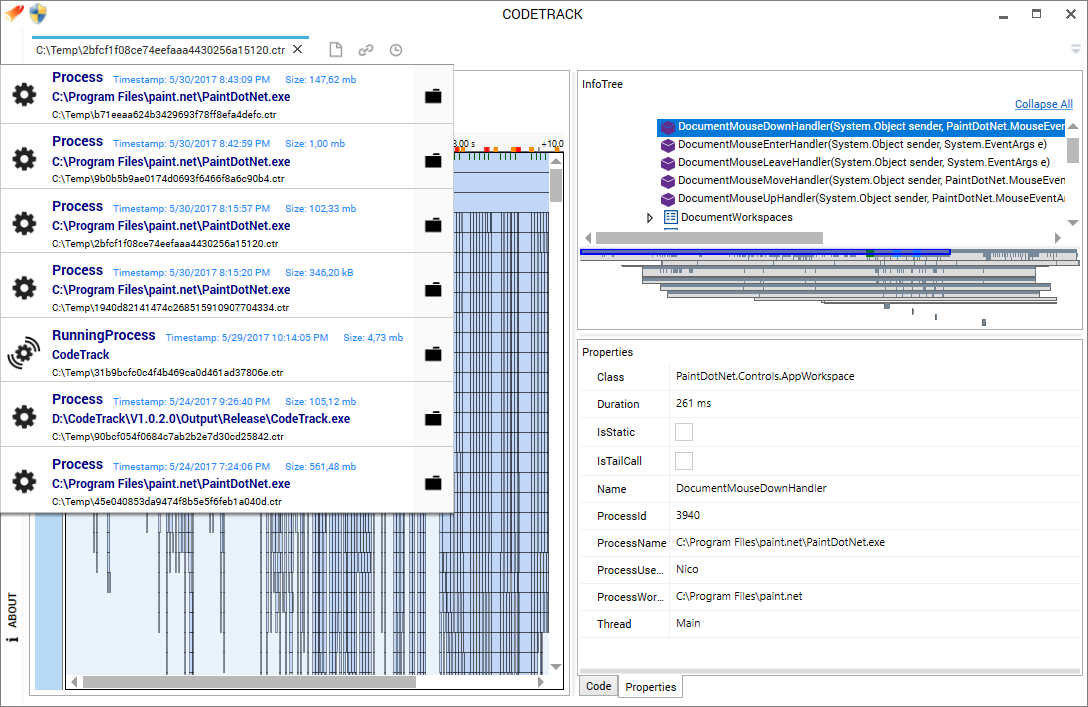

When no session has been opened for analysis yet, you get an overview of all previously traced and/or opened sessions.



If you already opened a session you can still get this list by clicking the history (clock) icon on the right of your tab titles. You can then open a file from here too.




Goto top


Current session info

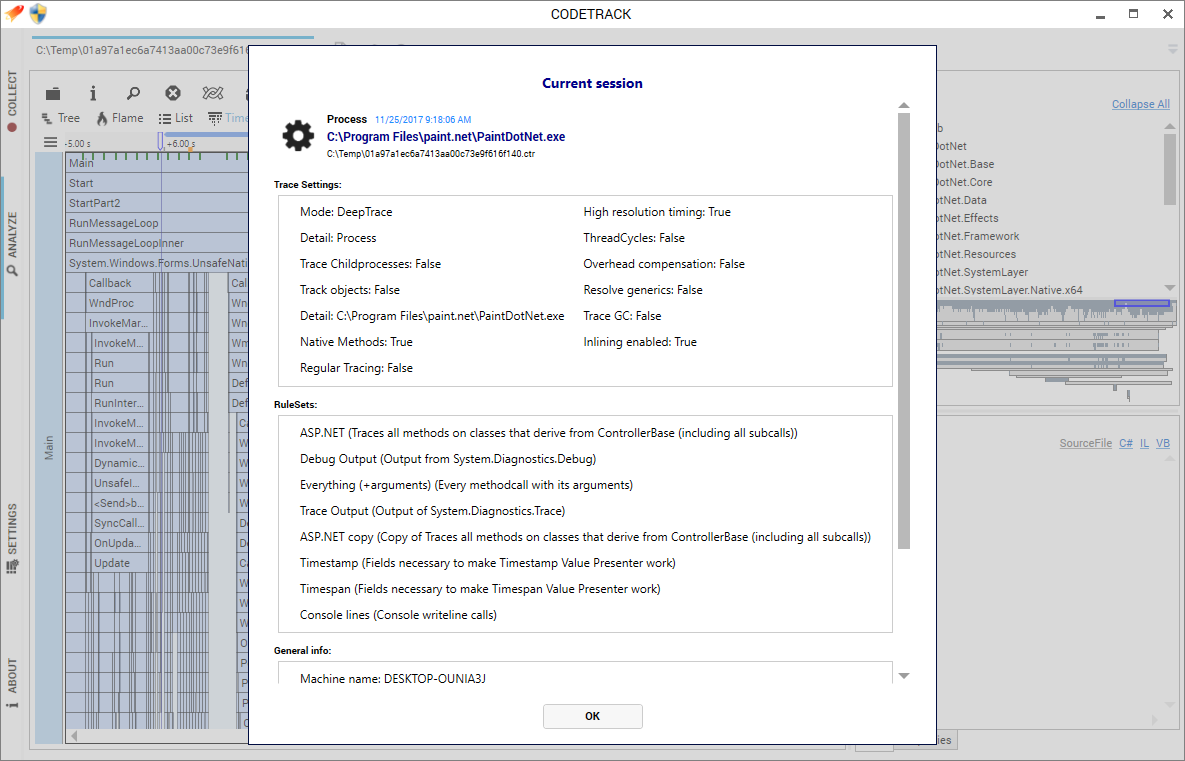

By clicking the info button in the toolbar, you get a dialog showing you the settings you used for tracing and som extra info about the process(es) in the current session.





Goto top

Code

In the code window you can see the decompiled code of the currently selected method. You can select the decompilation target language by clicking on the links.

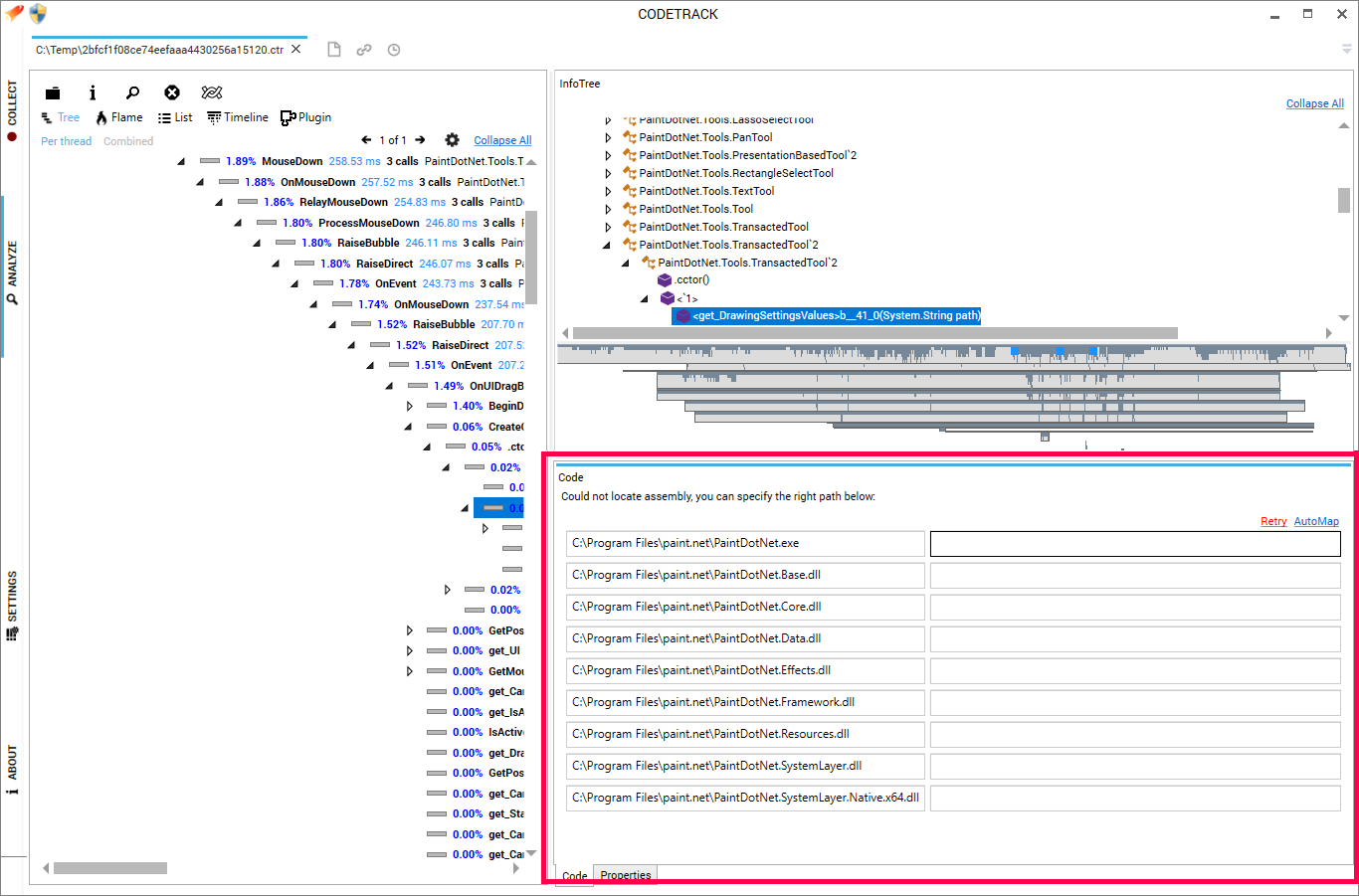

Note that this will only work if the assembly can be found on the location were it's traced. If an assembly is missing, you can specify its location on the current machine by typing it in the textbox on the right and clicking retry. Most of the time, all other missing assemblies will be in the same location, click the automap link to try and find other missing assemblies based on the one you already entered.



If pdbs where available at the time of tracing and they can be found at the expected location, you can also show the original source code in this window.
